num_type eng_type eng_clutched eng_thrust_vectors eng_power top_of_green eng_redline eng_prop_gear_ratio eng_location vert_cant side_cant thrust_offsets jet_params compressor_spin_dir

General

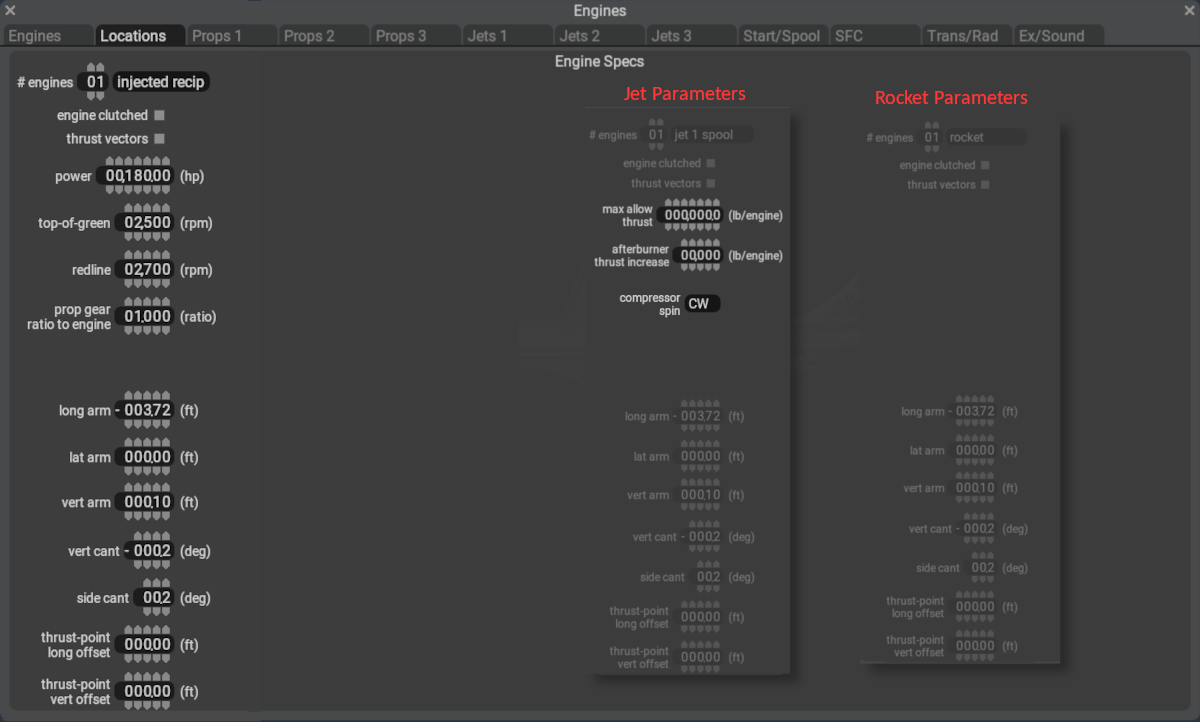

This page is used to set the location of the engine as well as other high-level parameters for the engine type. The engine location entered here will be the location at which X-Plane will apply the force provided by the engine. For propeller aircraft, this will be the location of the prop hub. For Jets and rockets, this will be the location of the exhaust nozzles / tailpipes.
